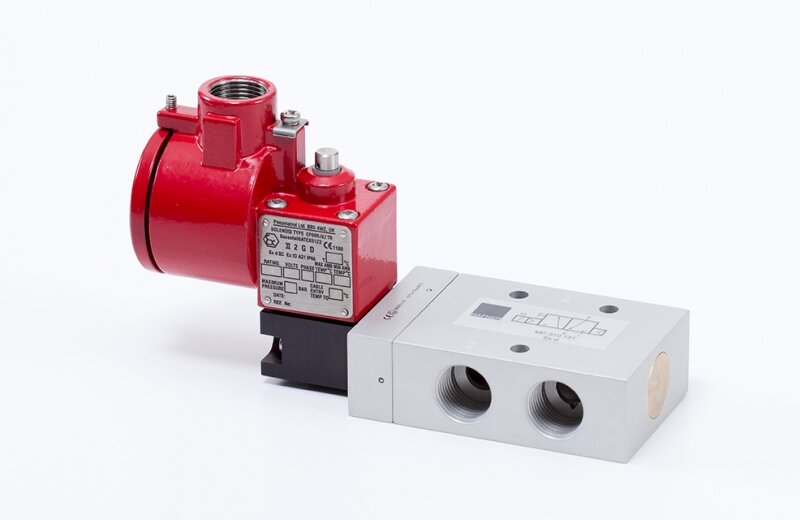

MC 310 121 EX D

Name: MC 310 121 EX D
Brand: HAFNER Pneumatika
Availability: InStock
Mágnes és az elektromos csatlakozó nem tartozék
Bejelentkezés az árak megtekintéséhez
Egyedi igények rögzítésére a rendelésösszesítő felületen van lehetőség
Shopware\Core\Content\Media\MediaCollection {#23395
  #extensions: []
  #elements: array:4 [
    "01931f9953ea72dba8b81cce13f5eee0" => Shopware\Core\Content\Media\MediaEntity {#6825
      #extensions: array:2 [
        "foreignKeys" => Shopware\Core\Framework\Struct\ArrayStruct {#6824
          #extensions: []
          #data: []
          #apiAlias: "media_foreign_keys_extension"
        }
        "internal_mapping_storage" => Shopware\Core\Framework\Struct\ArrayStruct {#6798
          #extensions: []
          #data: []
          #apiAlias: null
        }
      ]
      #_uniqueIdentifier: "01931f9953ea72dba8b81cce13f5eee0"
      #versionId: null
      #translated: array:3 [
        "alt" => null
        "title" => null
        "customFields" => []
      ]
      #createdAt: DateTimeImmutable @1731401962 {#6802
        date: 2024-11-12 08:59:22.478 UTC (+00:00)
      }
      #updatedAt: DateTimeImmutable @1731401962 {#6429
        date: 2024-11-12 08:59:22.501 UTC (+00:00)
      }
      -_entityName: "media"
      -_fieldVisibility: Shopware\Core\Framework\DataAbstractionLayer\FieldVisibility {#6469
        -internalProperties: array:2 [
          0 => "mediaTypeRaw"
          1 => "thumbnailsRo"
        ]
      }
      #userId: null
      #mimeType: "image/jpeg"
      #fileExtension: "jpg"
      #fileSize: 28897
      #title: null
      #metaDataRaw: null
      #mediaTypeRaw: "O:47:"Shopware\Core\Content\Media\MediaType\ImageType":3:{s:13:"\x00*\x00extensions";a:0:{}s:7:"\x00*\x00name";s:5:"IMAGE";s:8:"\x00*\x00flags";a:0:{}}"
      #metaData: array:3 [
        "type" => 2
        "width" => 800
        "height" => 520
      ]
      #mediaType: Shopware\Core\Content\Media\MediaType\ImageType {#6433
        #extensions: []
        #name: "IMAGE"
        #flags: []
      }
      #uploadedAt: DateTimeImmutable @1731401962 {#6435
        date: 2024-11-12 08:59:22.500 UTC (+00:00)
      }
      #alt: null
      #url: "http://hafnerdemo.door2world.com/media/ea/ae/a5/1731401962/F-03293.jpg"
      #fileName: "F-03293"
      #user: null
      #translations: null
      #categories: null
      #productManufacturers: null
      #productMedia: null
      #avatarUsers: null
      #thumbnails: Shopware\Core\Content\Media\Aggregate\MediaThumbnail\MediaThumbnailCollection {#6434
        #extensions: []
        #elements: []
      }
      #mediaFolderId: "b86ce781fae84f8e8e60b814690d985d"
      #mediaFolder: null
      #hasFile: true
      #private: false
      #propertyGroupOptions: null
      #mailTemplateMedia: null
      #tags: null
      #thumbnailsRo: "O:77:"Shopware\Core\Content\Media\Aggregate\MediaThumbnail\MediaThumbnailCollection":2:{s:13:"\x00*\x00extensions";a:0:{}s:11:"\x00*\x00elements";a:0:{}}"
      #path: "media/ea/ae/a5/1731401962/F-03293.jpg"
      #documentBaseConfigs: null
      #shippingMethods: null
      #paymentMethods: null
      #productConfiguratorSettings: null
      #orderLineItems: null
      #cmsBlocks: null
      #cmsSections: null
      #cmsPages: null
      #documents: null
      #appPaymentMethods: null
      #appShippingMethods: null
      #productDownloads: null
      #orderLineItemDownloads: null
      #customFields: null
      #id: "01931f9953ea72dba8b81cce13f5eee0"
    }
    "01931fa7199c732b8a36f3e25b271339" => Shopware\Core\Content\Media\MediaEntity {#6801
      #extensions: array:2 [
        "foreignKeys" => Shopware\Core\Framework\Struct\ArrayStruct {#6800
          #extensions: []
          #data: []
          #apiAlias: "media_foreign_keys_extension"
        }
        "internal_mapping_storage" => Shopware\Core\Framework\Struct\ArrayStruct {#6799
          #extensions: []
          #data: []
          #apiAlias: null
        }
      ]
      #_uniqueIdentifier: "01931fa7199c732b8a36f3e25b271339"
      #versionId: null
      #translated: array:3 [
        "alt" => null
        "title" => null
        "customFields" => []
      ]
      #createdAt: DateTimeImmutable @1731402865 {#6793
        date: 2024-11-12 09:14:25.057 UTC (+00:00)
      }
      #updatedAt: DateTimeImmutable @1731402865 {#6797
        date: 2024-11-12 09:14:25.120 UTC (+00:00)
      }
      -_entityName: "media"
      -_fieldVisibility: Shopware\Core\Framework\DataAbstractionLayer\FieldVisibility {#6469}
      #userId: null
      #mimeType: "text/plain"
      #fileExtension: "stp"
      #fileSize: 978393
      #title: null
      #metaDataRaw: null
      #mediaTypeRaw: "O:50:"Shopware\Core\Content\Media\MediaType\DocumentType":3:{s:13:"\x00*\x00extensions";a:0:{}s:7:"\x00*\x00name";s:8:"DOCUMENT";s:8:"\x00*\x00flags";a:0:{}}"
      #metaData: null
      #mediaType: Shopware\Core\Content\Media\MediaType\DocumentType {#6421
        #extensions: []
        #name: "DOCUMENT"
        #flags: []
      }
      #uploadedAt: DateTimeImmutable @1731402865 {#6425
        date: 2024-11-12 09:14:25.118 UTC (+00:00)
      }
      #alt: null
      #url: "http://hafnerdemo.door2world.com/media/c5/42/97/1731402865/GZ-MC310121EXD.stp"
      #fileName: "GZ-MC310121EXD"
      #user: null
      #translations: null
      #categories: null
      #productManufacturers: null
      #productMedia: null
      #avatarUsers: null
      #thumbnails: Shopware\Core\Content\Media\Aggregate\MediaThumbnail\MediaThumbnailCollection {#6427
        #extensions: []
        #elements: []
      }
      #mediaFolderId: "99c48d18823d4e838995bcca2ac6f531"
      #mediaFolder: null
      #hasFile: true
      #private: false
      #propertyGroupOptions: null
      #mailTemplateMedia: null
      #tags: null
      #thumbnailsRo: "O:77:"Shopware\Core\Content\Media\Aggregate\MediaThumbnail\MediaThumbnailCollection":2:{s:13:"\x00*\x00extensions";a:0:{}s:11:"\x00*\x00elements";a:0:{}}"
      #path: "media/c5/42/97/1731402865/GZ-MC310121EXD.stp"
      #documentBaseConfigs: null
      #shippingMethods: null
      #paymentMethods: null
      #productConfiguratorSettings: null
      #orderLineItems: null
      #cmsBlocks: null
      #cmsSections: null
      #cmsPages: null
      #documents: null
      #appPaymentMethods: null
      #appShippingMethods: null
      #productDownloads: null
      #orderLineItemDownloads: null
      #customFields: null
      #id: "01931fa7199c732b8a36f3e25b271339"
    }
    "01931fb426cb73bf99f810a9c5b22c4c" => Shopware\Core\Content\Media\MediaEntity {#6420
      #extensions: array:2 [
        "foreignKeys" => Shopware\Core\Framework\Struct\ArrayStruct {#6796
          #extensions: []
          #data: []
          #apiAlias: "media_foreign_keys_extension"
        }
        "internal_mapping_storage" => Shopware\Core\Framework\Struct\ArrayStruct {#6795
          #extensions: []
          #data: []
          #apiAlias: null
        }
      ]
      #_uniqueIdentifier: "01931fb426cb73bf99f810a9c5b22c4c"
      #versionId: null
      #translated: array:3 [
        "alt" => null
        "title" => null
        "customFields" => []
      ]
      #createdAt: DateTimeImmutable @1731403720 {#6794
        date: 2024-11-12 09:28:40.400 UTC (+00:00)
      }
      #updatedAt: DateTimeImmutable @1731403720 {#6813
        date: 2024-11-12 09:28:40.475 UTC (+00:00)
      }
      -_entityName: "media"
      -_fieldVisibility: Shopware\Core\Framework\DataAbstractionLayer\FieldVisibility {#6469}
      #userId: null
      #mimeType: "image/jpeg"
      #fileExtension: "jpg"
      #fileSize: 8423
      #title: null
      #metaDataRaw: null
      #mediaTypeRaw: "O:47:"Shopware\Core\Content\Media\MediaType\ImageType":3:{s:13:"\x00*\x00extensions";a:0:{}s:7:"\x00*\x00name";s:5:"IMAGE";s:8:"\x00*\x00flags";a:0:{}}"
      #metaData: array:3 [
        "type" => 2
        "width" => 131
        "height" => 69
      ]
      #mediaType: Shopware\Core\Content\Media\MediaType\ImageType {#6817
        #extensions: []
        #name: "IMAGE"
        #flags: []
      }
      #uploadedAt: DateTimeImmutable @1731403720 {#6453
        date: 2024-11-12 09:28:40.473 UTC (+00:00)
      }
      #alt: null
      #url: "http://hafnerdemo.door2world.com/media/c4/9a/85/1731403720/GS-MH310.jpg"
      #fileName: "GS-MH310"
      #user: null
      #translations: null
      #categories: null
      #productManufacturers: null
      #productMedia: null
      #avatarUsers: null
      #thumbnails: Shopware\Core\Content\Media\Aggregate\MediaThumbnail\MediaThumbnailCollection {#6457
        #extensions: []
        #elements: []
      }
      #mediaFolderId: "88a4167ca8954e988ce5d72e72e9c2f9"
      #mediaFolder: null
      #hasFile: true
      #private: false
      #propertyGroupOptions: null
      #mailTemplateMedia: null
      #tags: null
      #thumbnailsRo: "O:77:"Shopware\Core\Content\Media\Aggregate\MediaThumbnail\MediaThumbnailCollection":2:{s:13:"\x00*\x00extensions";a:0:{}s:11:"\x00*\x00elements";a:0:{}}"
      #path: "media/c4/9a/85/1731403720/GS-MH310.jpg"
      #documentBaseConfigs: null
      #shippingMethods: null
      #paymentMethods: null
      #productConfiguratorSettings: null
      #orderLineItems: null
      #cmsBlocks: null
      #cmsSections: null
      #cmsPages: null
      #documents: null
      #appPaymentMethods: null
      #appShippingMethods: null
      #productDownloads: null
      #orderLineItemDownloads: null
      #customFields: null
      #id: "01931fb426cb73bf99f810a9c5b22c4c"
    }
    "01931f9a7b2671699020ea00f917205e" => Shopware\Core\Content\Media\MediaEntity {#6455
      #extensions: array:2 [
        "foreignKeys" => Shopware\Core\Framework\Struct\ArrayStruct {#6452
          #extensions: []
          #data: []
          #apiAlias: "media_foreign_keys_extension"
        }
        "internal_mapping_storage" => Shopware\Core\Framework\Struct\ArrayStruct {#6816
          #extensions: []
          #data: []
          #apiAlias: null
        }
      ]
      #_uniqueIdentifier: "01931f9a7b2671699020ea00f917205e"
      #versionId: null
      #translated: array:3 [
        "alt" => null
        "title" => null
        "customFields" => []
      ]
      #createdAt: DateTimeImmutable @1731402038 {#6815
        date: 2024-11-12 09:00:38.060 UTC (+00:00)
      }
      #updatedAt: DateTimeImmutable @1731402038 {#6814
        date: 2024-11-12 09:00:38.096 UTC (+00:00)
      }
      -_entityName: "media"
      -_fieldVisibility: Shopware\Core\Framework\DataAbstractionLayer\FieldVisibility {#6469}
      #userId: null
      #mimeType: "image/jpeg"
      #fileExtension: "jpg"
      #fileSize: 52697
      #title: null
      #metaDataRaw: null
      #mediaTypeRaw: "O:47:"Shopware\Core\Content\Media\MediaType\ImageType":3:{s:13:"\x00*\x00extensions";a:0:{}s:7:"\x00*\x00name";s:5:"IMAGE";s:8:"\x00*\x00flags";a:0:{}}"
      #metaData: array:3 [
        "type" => 2
        "width" => 868
        "height" => 556
      ]
      #mediaType: Shopware\Core\Content\Media\MediaType\ImageType {#6763
        #extensions: []
        #name: "IMAGE"
        #flags: []
      }
      #uploadedAt: DateTimeImmutable @1731402038 {#6767
        date: 2024-11-12 09:00:38.094 UTC (+00:00)
      }
      #alt: null
      #url: "http://hafnerdemo.door2world.com/media/39/b8/7a/1731402038/GZ-MC310121EXD.jpg"
      #fileName: "GZ-MC310121EXD"
      #user: null
      #translations: null
      #categories: null
      #productManufacturers: null
      #productMedia: null
      #avatarUsers: null
      #thumbnails: Shopware\Core\Content\Media\Aggregate\MediaThumbnail\MediaThumbnailCollection {#6373
        #extensions: []
        #elements: []
      }
      #mediaFolderId: "7167cf3c48144be0b6549497a1af4e15"
      #mediaFolder: null
      #hasFile: true
      #private: false
      #propertyGroupOptions: null
      #mailTemplateMedia: null
      #tags: null
      #thumbnailsRo: "O:77:"Shopware\Core\Content\Media\Aggregate\MediaThumbnail\MediaThumbnailCollection":2:{s:13:"\x00*\x00extensions";a:0:{}s:11:"\x00*\x00elements";a:0:{}}"
      #path: "media/39/b8/7a/1731402038/GZ-MC310121EXD.jpg"
      #documentBaseConfigs: null
      #shippingMethods: null
      #paymentMethods: null
      #productConfiguratorSettings: null
      #orderLineItems: null
      #cmsBlocks: null
      #cmsSections: null
      #cmsPages: null
      #documents: null
      #appPaymentMethods: null
      #appShippingMethods: null
      #productDownloads: null
      #orderLineItemDownloads: null
      #customFields: null
      #id: "01931f9a7b2671699020ea00f917205e"
    }
  ]
}
MC 310 121 EX D
Kérjük regisztráljon a 3D modellek és termék adatlapok letöltéséhez.
Termékszám	Csatlakozás	Működés	Teljesítményigény	Átáramlás (P1=6 bar, ΔP=1 bar)	Üzemi nyomás
MC 310 701 EX D	G 1/4"	monostabil	3 W / 5 VA	1250 l/perc	2…10 bar
MOC 310 121 EX D	G 1/2"	monostabil	3 W / 5 VA	3000 l/perc	1…10 bar
ATEX zóna:	II 2 G Ex h IIC T6 Gb -10°C ≤Ta ≤ +50°C \| II 2 D Ex h IIIC
Csatlakozás:	G 1/2"
Csatlakozások elhelyezkedése:	szelep két oldalán/egymással szemben
Funkció:	3/2-es
Hőmérséklet tartomány:	-10°C…+50°C
Kapcsolási idő:	50 ms \| 6 bar, +20°C-on
Közeg:	sűrített levegő
Mágnes tokozás (ATEX esetén):	Ex d
Működés:	monostabil
Szelepház anyaga:	alumínium
Szelep változat:	különálló szelep
Teljesítményigény:	3 W / 5 VA
Vezérlés:	elektromos/mágneses vezérlésű
Átáramlás (P1=6 bar, ΔP=1 bar):	3000 l/perc
Üzemi nyomás:	1…10 bar
