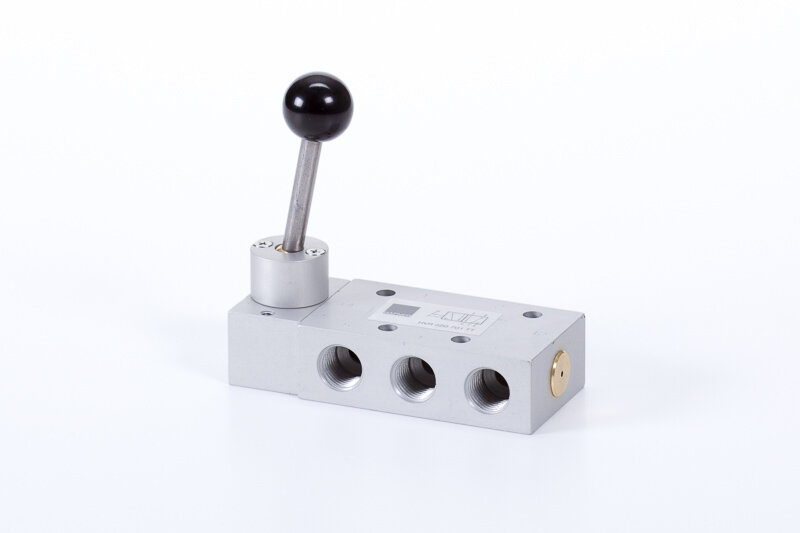

HVR 520 701 TT
5/2-es kézi működtetésű szelep, bistabil - G1/4" - hidegálló
Kérjük regisztráljon a 3D modellek és termék adatlapok letöltéséhez.
Termékszám	Csatlakozás	Működtető erő	Működés	Átáramlás (P1=6 bar, ΔP=1 bar)	Üzemi nyomás
HVR 520 501 TT	G 1/8"	20 N	bistabil	650 l/perc	1…10 bar
Csatlakozás:	G 1/4"
Csatlakozások elhelyezkedése:	szelep két oldalán/egymással szemben
Funkció:	5/2-es
Hőmérséklet tartomány:	-50...+50°C
Közeg:	sűrített levegő
Működtető erő:	20 N
Működés:	bistabil
Szelepház anyaga:	alumínium
Szelep változat:	különálló szelep
Vezérlés:	kézi, karos működtetésű
Átáramlás (P1=6 bar, ΔP=1 bar):	1250 l/perc
Üzemi nyomás:	1…10 bar
